Maintain target lock with confidence using Trimble Active Tracking technology and selecting from 8 different channels. Target has 360 foil and a single ring of LED's for Active Tracking.
Target height - Trimble Standard - 135mm
Prism Constant: +22mm

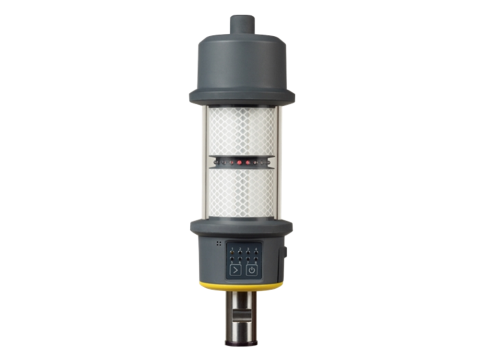

The Trimble Active Track 360 (AT360) is a reflective foil target designed for use as an active tracker target. The AT360 includes a tilt sensor that enables eBubble support when connected to the controller with Bluetooth. The eBubble is used to check that the target is level. The tilt angle and tilt distance is stored with each observation.
For more information on connecting the AT360 to your controller, see Bluetooth connections.
When connected to the AT360, changing the Target ID in the Trimble Access software automatically updates the target ID setting on the AT360 once you tap Accept in the Target screen. If you change the target ID on the AT360 and the current target is an AT360, then the Target ID automatically updates on the controller.
Manual mode can be used if the battery in the AT360 needs charging and you do not have a replacement battery available. When using the AT360 in manual mode, Autolock is disabled and you must manually aim the instrument at the target.
When you enable Autolock and the current prism is the Active Track 360 then the software automatically switches the tracking mode to Active if it is in manual mode.
